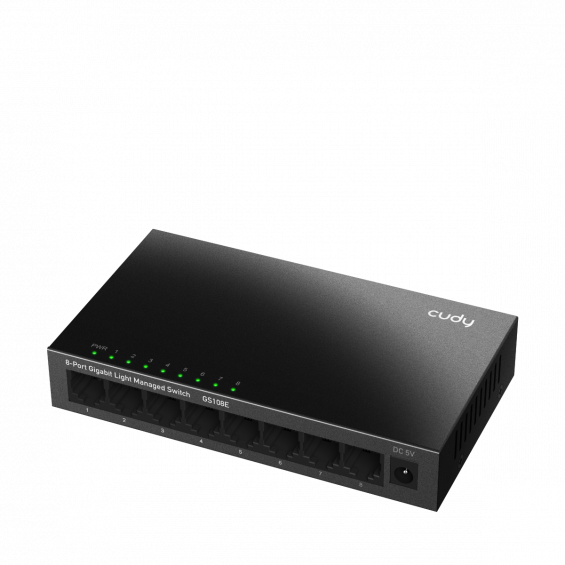

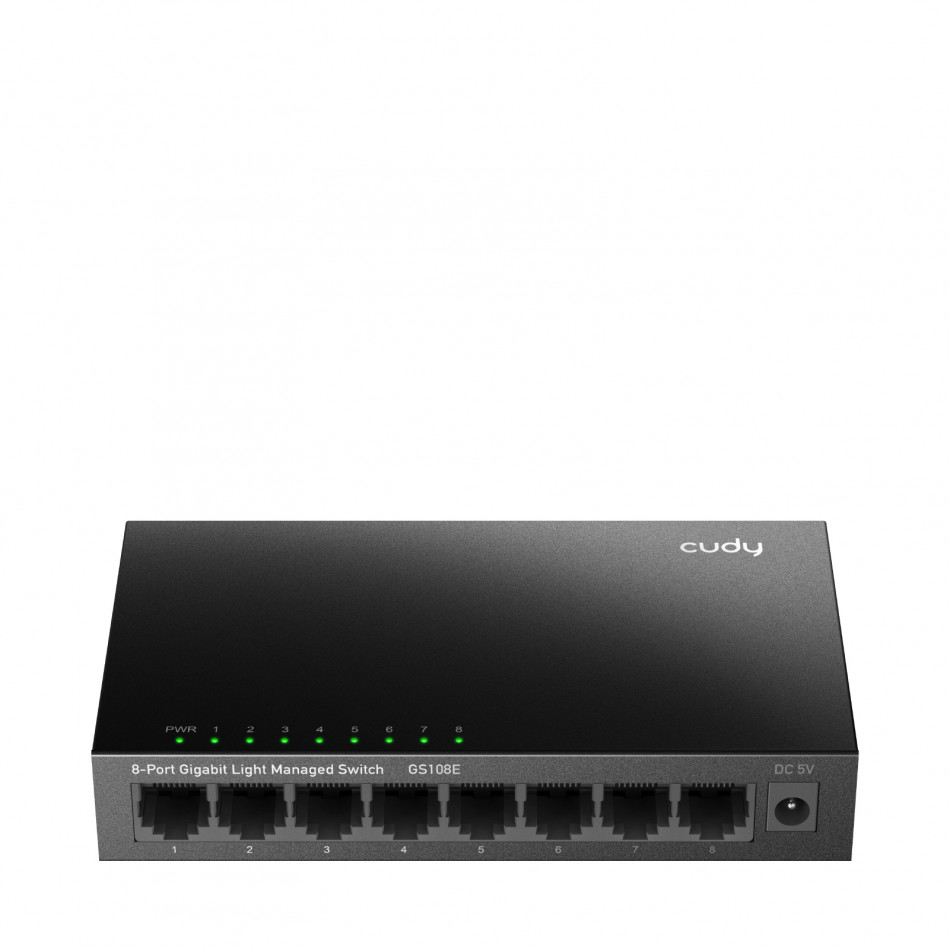

Cudy Switch Gigabit de 8 Puertos -hasta 1000Mbps - Plug and Play - Carcasa de Metal

Fabricante:

CUDY

P/N:

EAN:

Código:

Para ver los precios debe estar logueado. CLIC AQUÍ

8 puertos Gigabit Ethernet
Administración web, SNMP
VLAN (802.1Q/MTU/Voz/Basada en puerto)
QoS (802.1p/DSCP/basado en puerto)
Port Mirror, Static Aggregation, etc
STP/RSTP y prevención de bucles
Inspección de DHCP, Inspección de IGMP
EEE (Ahorro de energía 802.3az)
Escritorio, montaje en pared

138×78×25 mm (5,43×3,07×0,98")

Interfaces	Gigabit RJ45 Ports	8
	LED	Power Speed/Link/ACT of Each Ethernet Port
	Power Input	DC Jack
Performance	Copper Speed and Distance	Cat. 3 or higher cable: 100 meters at 10 Mbps Cat. 5 or higher cable: 100 meters at 100 Mbps Cat. 5e or higher cable: 100 meters at Gigabit Cat. 6 or higher cable: 150 meters at Gigabit
	MAC Address Table	8192
	Max Switching Capacity	16 Gbps
	Max Forwarding Rate	11.904 Mpps
	Jumbo Frame	15 KB
	Packet Buffer	4 Mbit
Power	Basic Power Saving	True
	Power Methods	DC
	DC	5V⎓0.55A
	Power Adapter	Input: 100-240V~, 50/60Hz Output: 5V⎓0.55A
	Max Power Consumption	2.75W
	Idle Power Consumption	2.2W
Switching	802.3 Protocols	802.3x Flow Control 802.3i 10BASE-T 802.3u 100BASE-TX 802.3ab 1000BASE-T 802.3az Power Saving
	802.1 Protocols	802.1d: STP 802.1w: RSTP 802.1p: LAN Layer 2 QoS/CoS 802.1q: VLAN Bridge Operation 802.1ab: LLDP/LLDP-MED
	Port Management	Port On/Off Port Negotiation Speed Port Trunk (Static Aggregation) Port Mirror Data Rate Limit Jumbo Frame Settings Storm Control Traffic Monitor MAC Address Management EEE (802.3az)
	Port Mirror Sessions	4
	Port Trunk Groups	4
	Max Port per Port Trunk Groups	8
	L2 Features	IGMP Snooping Loop Prevention DHCP Snooping STP/RSTP LLDP Config and Neighbors MTU VLAN Port-Based VLAN 802.1Q VLAN Voice VLAN DSCP QoS 802.1p QoS Port-Based QoS
Reliability	EMS	IEC/EN 61000-4-2, Level 2 ESD: Contact: 4kV; Air: 8kV IEC/EN 61000-4-5, Level 3 Surge: 2kV
	Environment	Operating Temperature: 0 ℃ ~ 40 ℃ (32 ℉ ~104 ℉) Storage Temperature: -40 ℃ ~ 70 ℃ (-40 ℉ ~ 158 ℉) Operating Humidity: 10% ~ 90% non-condensing Storage Humidity: 5% ~ 90% non-condensing
System	Control Methods	Config Web Page SNMP V1/V2
	Firmware Upgrade	Local Upgrade
	Reliability	Backup and Restore
	Diagnostic Tools	Cable Status/Length Diagnosis Ping
	Languages	English Bengali German Spanish French Portuguese Russian Arabic Indonesian Hindi Urdu Traditional Chinese Simplified Chinese
Mechanical	Dimension	138×78×25 mm 5.43×3.07×0.98 inches
	Product Weight	214.5 g (7.57 oz.)
	Casing Material	Metal
	Installation	Desktop Wall-mount

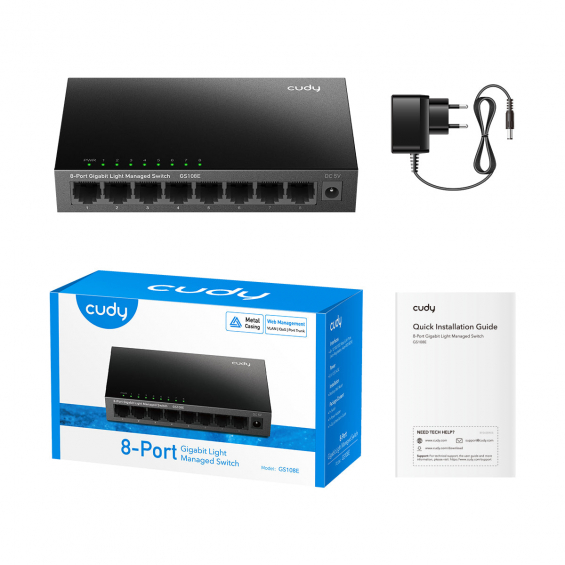

Package Content	GS108E Power Adapter Installation Guide
Ordering Information	Retail Package Dimension	EU/US: 151×90.5×63 mm 5.94×3.56×2.48 inches
	Retail Package Weight	EU: 316.5 g (11.16 oz.)
	Units per Carton	EU/US: 40
	Carton Net Weight	EU: 14.5 kg (31.97 lbs)
	Carton Gross Weight	EU: 15.1 kg (33.29 lbs)
	Carton Dimension	EU/US: 48.5×32.5×27.8 cm 19.09×12.8×10.94 inches

-/-
